PCB Transformer - Open

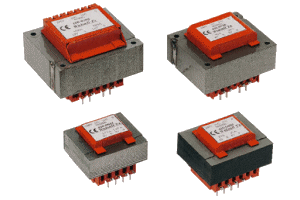

Flame retardant PCB transformer, 230 VAC primary

Flame retardant PCB mounting mains transformers designed according to the following specifications. Specifications: Power: Frequency: Primary: Secondary: Isolation: Temp. class: Approvals: 3-20 VA 50/60 Hz 230 VAC 2 parallel (se list below) 4 kV RMS B (130°) EN61558

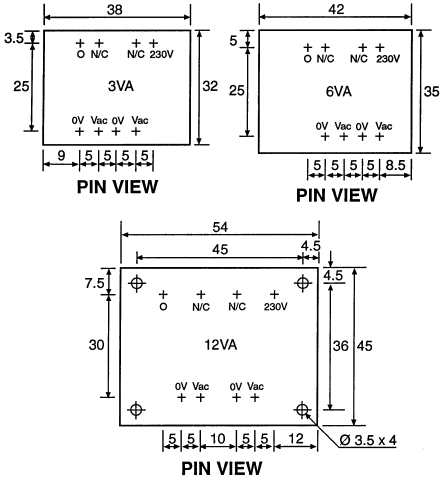

PCB mounting low voltage mains transformers with a single 230 or twin 115 VAC 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options PCB mounting low voltage mains transformers with a single 230V 50/60Hz primary winding Thermal fuse in primary providing overload and short circuit protection Flame retardent materials to UL94-V0 Independent secondary windings suitable for series/parallel connection to give a wide range of output voltage and current options Double section metric bobbin construction Fully shrouded windings Full varnish impregnation 100% electrical and flash tested Extra pins for secure board mounting Dimensions   rated  regulation  dimensions  pins  wt.  VA  % typ.  L.  W.  H.*  L  Æ  kg  3  20  38  35  30  5  1  0.14  6  25  43  36  33  5  1  0.18  12  12  54  45  41  5  1  0.4  20  60  54  42  5  1  0.5  Standard Transformers: 3VA Primary 0-230Vac Secondary 1.5VA per winding     stock no.  WIC no.           2x0-6V, 0.25A  456-0635 WT2103   2x0-9V, 0.17A  456-0641 WT2104   2x0-12V, 0.12A  456-0663 WT2105   2x0-15V, 01A  456-0679 WT2106   6VA Primary 0-230Vac Secondary 3VA per winding       stock no.  WIC no.           2x0-6V, 0.5A  456-0685 WT2107   2x0-9V, 0.33A  456-0691 WT2108   2x0-12V, 0.25A  456-0708 WT2109   2x0-15V, 0.2A  456-0720 WT2110   12VA Primary 0-230Vac Secondary 6VA per winding       stock no.  WIC no.           2x0-6V, 1.0A  456-0736 WT2111   2x0-9V, 0.67A  456-0742 WT2112   2x0-12V, 0.5A  456-0758 WT2113   2x0-15V, 0.4A  456-0764 WT2114   20VA Primary 0-230Vac Secondary 10VA per winding       stock no.  WIC no.           2x0-6V, 1.67A  456-0770 WT2115   2x0-9V, 1.1A  456-0786 WT2116   2x0-12V, 0.83A  456-0792 WT2117   2x0-15V, 0.67A  456-0809 WT2118
