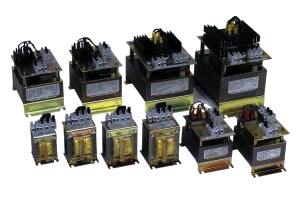

Linear DC Supply
3 Phase, for Built-In Application

Walsall Inductive Components Ltd supplies the following models of linear DC supplies for built-in applications.    • 3 Phase, non-filtered        Standard 24 VDC    • 3 Phase, filtered        Standard 24 VDC DC voltage, filtering and frequency can be modified to fit customer requirements

Please contact the salesdepartment at Walsall Inductive Components Ltd if you are searching for a linear DC supplies not listed a this page. 3 Phase, Non-filtered: TLOT 24V 2.5A - 25A Input [VAC] Output [VDC] Ampere [A] Power [W] Dimensions [mm] 3x380-400 24 2.5 60 130 x 120 x 115 3x380-400 24 5 120 160 x 150 x 125 3x380-400 24 7 168 160 x 150 x 125 3x380-400 24 10 240 187 x 177 x 155 3x380-400 24 15 360 187 x 177 x 155 3x380-400 24 20 480 215 x 208 x 190 3x380-400 24 25 600 215 x 208 x 190 TLOT 24V 30A - 85A Input [VAC] Output [VDC] Ampere [A] Power [W] Dimensions [mm] 3x380-400 24 30 60 245 x 240 x 260 3x380-400 24 40 120 245 x 240 x 260 3x380-400 24 50 168 245 x 240 x 275 3x380-400 24 60 240 245 x 240 x 325 3x380-400 24 70 360 290 x 300 x 325 3x380-400 24 85 480 290 x 300 x 340 With reservation for misprint and change of specifications with out warning. 3 Phase, Filtered: TLOTK 24V 2,5A - 25A Input [VAC] Output [VDC] Ampere [A] Power [W] Dimensions [mm] 3x380-400 24 2,5 60 130 x 120 x 135 3x380-400 24 5 120 160 x 150 x 170 3x380-400 24 7 168 160 x 150 x 170 3x380-400 24 10 240 187 x 177 x 195 3x380-400 24 15 360 187 x 177 x 195 3x380-400 24 20 480 215 x 208 x 235 3x380-400 24 25 600 215 x 208 x 235 TLOTK 24V 30A - 60A Input [VAC] Output [VDC] Ampere [A] Power [W] Dimensions [mm] 3x380-400 24 30 720 245 x 240 x 260 3x380-400 24 40 960 245 x 240 x 260 3x380-400 24 50 1200 245 x 240 x 270 3x380-400 24 60 1440 245 x 240 x 280 With reservation for misprint and change of specifications with out warning.
