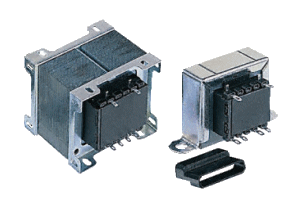

Chassis Mount, Clamp Construction,
230 or 115/230 VAC Primary transformer, 6VA - 200VA

Chassis mounting low voltage mains transformers designed according to the following specifications. Specifications: Power: Frequency: Primary: Secondary: Isolation: Temp. class: Approvals: 50 - 1000 VA 50/60 Hz 230 or 115/230 VAC 2 parallel (se list below) 4 kV RMS A (105°) BS3535 and EN 60 742

Chassis mounting low voltage mains transformers with a single 230 VAC or twin 115 VAC 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options. Double section bobbin construction Fully shrouded bobbins Full varnish impregnation Two hole fixing wrap-over clamps Solder tag terminations Optional terminal shrouds 100% electrical and flash tested Selection guide   rated  regulation  dimensions  fixing centres  wt.  VA  % typ.  L.  W.  H.     kg  6  25  45  40  37  53.5x4BA  0.2  12  15  59  50  50  70x2BA  0.4  20  12  59  57  50  70x2BA  0.55  50  10  79  62  65  92x2BA  1.0  75  10  79  75  65  54x54x4BA  1.5  100  10  89  68  75  57x43.5x2BA  1.6  150  10  100  82  82  72x60xM5  2.0  200  7  100  92  82  72x70xM5  2.8  Standard Transformers: 6VA Primary 0-230Vac Secondary 3VA per winding  output stock no. WIC no.         2x5V, 0.6A  804-868  WT1200 2x6V, 0.5A  804-874  WT1201 2x9V, 0.33A  804-880  WT1202 2x12V, 0.25A  804-896  WT1203 2x15V, 0.2A  804-903  WT1204 2x18V, 0.17A  804-919  WT1205 2x20V, 0.15A  804-925  WT1206 2x24V, 0.12A  804-931  WT1207 terminal shroud  805-710  WT1285 12VA Primary 0-230Vac Secondary 6VA per winding  output  stock no.  WIC no.      2x5V, 1.2A  804-947  WT1208 2x6V, 1.0A  804-953  WT1209 2x9V, 0.67A  804-969  WT1210 2x12V, 0.5A  804-975 WT1211 2x15V, 0.4A  804-981  WT1212 2x18V, 0.33A  804-997  WT1213 2x20V, 0.3A  805-007  WT1214 2x24V, 0.25A  805-013  WT1215 terminal shroud  805-726  WT1286 20VA Primary 0-230Vac Secondary 10VA per winding  output  stock no.  WIC no.      2x5V, 2.0A  805-029  WT1216 2x6V, 1.67A  805-035  WT1217 2x6.3V, 1.59A  805-041  WT1218 2x9V, 1.1A  805-057  WT1219 2x12V, 0.83A  805-063  WT1220 2x15V, 0.67A  805-079  WT1221 2x18V, 0.55A  805-085  WT1222 2x20V, 0.5A  805-091  WT1223 2x24V, 0.42A  805-108  WT1224 terminal shroud  805-726  WT1286 50VA Primary 0-230Vac Secondary 25VA per winding  output stock no.  WIC no.      2x6V, 4.17A  805-114  WT1225 2x9V, 2.78A  805-120  WT1226 2x12V, 2.08A  805-136  WT1227 2x15V, 1.67A  805-142  WT1228 2x18V, 1.39A  805-158  WT1229 2x20V, 1.25A  805-164  WT1230 2x24V, 1.04A  805-170  WT1231 terminal shroud  805-732  WT1287 75VA Primary 0-230Vac Secondary 37·5VA per winding        output stock no.  WIC no.              2x6V, 6·25A  805-186  WT1232      2x9V, 4·17A  805-192  WT1233      2x12V, 3·12A  805-209  WT1234      2x15V, 2·5A  805-215  WT1235      2x18V, 2·08A  805-221  WT1236      2x24V, 1·56A  805-237  WT1237      2x50V, 0·75A  805-243  WT1238      terminal shroud  805-732  WT1287      100VA Primary 0-230Vac Secondary 50VA per winding    output  stock no.  WIC no.             2x6V, 8·33A  805-259  WT1239      2x9V, 5·55A  805-265  WT1240      2x12V, 4·17A  805-271  WT1241      2x15V, 3·33A  805-287 WT1242      2x18V, 2·78A  805-293  WT1243      2x20V, 2·5A  805-300  WT1244      2x24V, 2·08A  805-316  WT1245      2x30V, 1·67A  805-322  WT1246      2x50V, 1·0A  805-338  WT1247      terminal shroud  805-732  WT1287      150VA Primary 0-230Vac Secondary 75VA per winding    output   stock no.   WIC no.                2x6V, 12·5A  805-344  WT1248      2x9V, 8·33A  805-350  WT1249      2x12V, 6·25A  805-366  WT1250      2x15V, 5·0A  805-372  WT1251      2x18V, 4·17A  805-388  WT1252      2x24V, 3·12A  805-394  WT1253      2x50V, 1·5A  805-401  WT1254      200VA Primary 0-230Vac Secondary 100VA per winding    output  stock no.  WIC no.              2x6V, 16·67A  805-417  WT1255      2x9V, 11·1A  805-423  WT1256      2x12V, 8·33A  805-439  WT1257      2x15V, 6·67A  805-445  WT1258      2x18V, 5·55A  805-451  WT1259      2x20V, 5·0A  805-467  WT1260      2x24V, 4·17A  805-473  WT1261      2x30V, 3·33A  805-489  WT1262      2x50V, 2·0A  805-495  WT1263      6VA Clamp Primary 0-115-0115Vac (for 115 or 230Vac input) Secondary 3VA per winding  output  stock no.  WIC no.    2×0-6V, 0·5A  231-8123  WT1507 2×0-9V, 0·33A  231-8139  WT1508 2×0-12V, 0·25A  231-8145  WT1509 2×0-15V, 0·2A  231-8173  WT1510 2×0-24V, 0·12A  231-8151  WT1511 terminal shroud  805-710  WT1285 12VA Clamp Primary 0-115-0-115Vac (for 115 or 230Vac input) Secondary 6VA per winding  output stock no.  WIC no.    2×0-6V, 1·0A  231-8189  WT1512 2×0-9V, 0·67A  231-8195  WT1513 2×0-12V, 0·5A  231-8202  WT1514 2×0-15V, 0·4A  231-8218  WT1515 2×0-24V, 0·25A  231-8230  WT1516 terminal shroud  805-726  WT1286 20VA Clamp Primary 0-115-0-115Vac (for 115 or 230Vac input) Secondary 10VA per winding  output  stock no.  WIC no.    2×0-6V, 1·67A  231-8246  WT1517 2×0-9V, 1·1A  231-8252  WT1518 2×0-12V, 0·83A  231-8268  WT1519 2×0-15V, 0·67A  231-8274  WT1520 2×0-24V, 0·42A  231-8280  WT1521 terminal shroud  805-726  WT1286 50VA Clamp Primary 0-115-0-115Vac (for 115 or 230Vac input) Secondary 25VA per winding  output  stock no.  WIC no.    2×0-6V, 4·17A  231-8303  WT1522 2×0-9V, 2·78A  231-8296  WT1523 2×0-12V, 2·08A  231-8319  WT1524 2×0-15V, 1·67A  231-8325  WT1525 2×0-24V, 1·04A  231-8331  WT1526 terminal shroud  805-732  WT1287 100VA Frame Primary 0-115-0-115Vac (for 115 or 230Vac input) Secondary 50VA per winding  output  stock no.  WIC no.    2×0-6V, 8·33A  231-8347  WT1527 2×0-9V, 5·55A  231-8353  WT1528 2×0-12V, 4·17A  231-8369  WT1529 2×0-15V, 3·33A  231-8375  WT1530 2×0-24V, 2·08A  231-8397  WT1531 terminal shroud  805-732  WT1287
