1 Phase EI Transformer

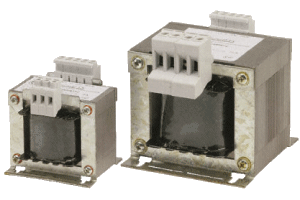

Control Panel Transformer - Primary +15-0-230-400 VAC
Standard control panel transformers with mounting prackets and terminals designed
according to the following specifications.
Specifications:
Power:
Frequency:
Primary:
Secondary:
Isolation:
Temp. class:
Approvals:
|
50 - 1000 VA
50/60 Hz
+15-0-230-400 VAC
12-0-12, 24-0-24, 55-0-55 or
0-230 VAC
4 kV RMS
B (130°)
EN61558-2
|
|
|
- High quality safety and isolating transformers designed for use in control circuits and general applications
- Low loss noise laminations
- Dual standard primary winding 230/400V ac with +15V tap for input flexibility
- Dual secondaries centre tapped. Earth terminal provided
- Varnish impregnated for overall protection against humidity and rusting
- Fully shrouded cage clamp terminal with voltage markings
- Detailed product specification on permanent label
- High efficiency, low regulation design
- 100% electrical and flash tested
|
|
Technical specification
|
| Rated |
Regulation |
Overall Size |
Fixing |
Fixing |
Wt. |
| VA |
% Typ |
L x W x H |
Centres |
Dia. |
Kg. |
| 50 |
9 |
84 x 84 x 91 |
64 x 64 |
4.5 |
1.9 |
| 100 |
7.5 |
84 x 97 x 91 |
64 x 72 |
4.5 |
2.5 |
| 150 |
6 |
108 x 90 x 110 |
84 x 72 |
6.5 |
3.5 |
| 200 |
4 |
108 x 114 x 110 |
84 x 92 |
6.5 |
5 |
| 300 |
5 |
120 x 143 x 130 |
90 x 106 |
6.5 |
6.9 |
| 500 |
2.5 |
120 x 143 x 130 |
90 x 106 |
6.5 |
7.5 |
| 1000 |
2 |
150 x 175 x 155 |
122 x 132 |
7 |
14.6 |
Standard Transformers:
Primary +15-0-230-400Vac
Secondary 12-0-12Vac (24Vac) |
|
|
|
| Rating
|
stock no. |
WIC no. |
|
|
|
|
|
|
|
| 50VA |
433-8630 |
WT1991 |
|
|
| 100VA |
433-8674 |
WT1995 |
|
|
| 150VA |
433-8719 |
WT1999 |
|
|
| 200VA |
433-8731 |
WT2001 |
|
|
| 300VA |
433-8781 |
WT2005 |
|
|
Primary +15-0-230-400Vac
Secondary 24-0-24Vac (48Vac) |
|
| Rating
|
stock no. |
WIC no. |
|
|
|
|
|
|
|
| 50VA |
433-8646 |
WT1992 |
|
|
| 100VA |
433-8680 |
WT1996 |
|
|
| 200VA |
433-8747 |
WT2002 |
|
|
| 300VA |
433-8797 |
WT2006 |
|
|
Primary +15-0-230-400Vac
Secondary 55-0-55Vac (110Vac) |
|
| Rating
|
stock no. |
WIC no. |
|
|
|
|
|
|
|
| 50VA |
433-8652 |
WT1993 |
|
|
| 100VA |
433-8696 |
WT1997 |
|
|
| 150VA |
433-8725 |
WT2000 |
|
|
| 200VA |
433-8753 |
WT2003 |
|
|
| 300VA |
433-8804 |
WT2007 |
|
|
| 500VA |
433-8810 |
WT2008 |
|
|
| 1000VA |
433-8848 |
WT2010 |
|
|
Primary +15-0-230-400Vac
Secondary 0-230Vac |
|
| Rating
|
stock no. |
WIC no. |
|
|
|
|
|
|
| 50VA |
433-8668 |
WT1994 |
|
|
| 100VA |
433-8703 |
WT1998 |
|
|
| 200VA |
433-8775 |
WT2004 |
|
|
| 500VA |
433-8832 |
WT2009 |
|
|
| 1000VA |
433-8854 |
WT2011 |
|
|
|
|
