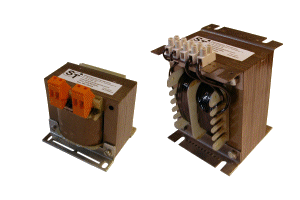

1 Phase EI Transformer
Control Panel Transformer - 230 or 400 VAC Primary

Standard control panel transformers with mounting prackets and terminals designed according to the following specifications. Specifications: Power: Frequency: Primary: Secondary: Isolation: Temp. class: Approvals: 20 - 1600 VA 50/60 Hz 230 or 400 VAC 24 or 230 or 400 VAC 4 kV RMS A (105°) EN61558-2

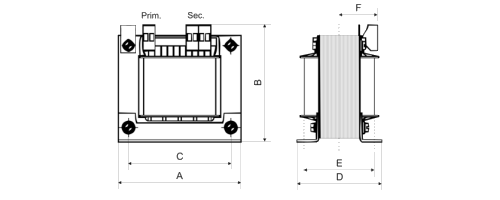

Vertical or Horizontal: Below are listed two standard programs of 1 phase EI transformers. The physical design of the vertical transformer is high with a small base area, where as the horizontal design has a larger base area and a smaller height. Standard 1 Phase EI Transformers - Horizontal: Type: TLE Power [VA] Core EI A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] 20 60/31 60 72 44 48 37 0.55 35 66/23 66 77 50 53 41 0.6 40 66/34.7 66 77 50 67 52 0.9 50 66/36.2 66 77 50 69 54 0.9 50 78/27.5 78 90 56 59 45 1.2 63 78/27.5 78 90 56 59 45 1.2 80 84/29.5 85 95 64 63 47 1.6 100 84/43.5 85 95 64 75 61 2.1 120 96/35.7 96 104 84 77 61 2.3 160 96/45.7 96 104 84 87 70 2.9 220 96/59.7 96 104 84 100 84 3.7 250 96/59.7 96 104 84 100 84 3.7 250 120/53.5 120 120 90 103 82 5.2 300 120/53.5 120 120 90 103 82 5.2 300 120/61.7 120 120 90 110 90 6.0 360 120/61.7 120 120 90 110 90 6.0 360 120/73.7 120 120 90 121 102 6.9 400 120/73.7 120 120 90 121 102 6.9 400 150/41.7 150 147 122 100 75 7.2 500 150/49.6 150 147 122 108 83 7.8 630 150/66.6 150 147 122 125 101 10.0 800 150/66.6 150 147 122 125 101 10.0 800 150/92.6 150 147 122 151 127 12.8 1000 150/92.6 150 147 122 151 127 12.8 1300 174/74 174 154 135 142 107 14.9 1600 174/94 174 154 135 160 126 19.0 With reservation for misprint and change of specifications with out warning. Standard 1 Phase EI Transformers - Vertical: Type: TSE Power [VA] Core EI A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] 20 60/21 50 85 40 48 38 0.55 35 60/31 50 85 40 58 48 0.8 50 66/36.2 65 103 50 66 52 1.25 50 78/27.5 65 103 50 66 52 1.25 60 78/27.5 65 103 50 66 52 1.25 80 84/29.5 70 109 56 64 54 1.5 100 84/43.5 70 109 56 78 68 1.9 120 96/35.7 80 120 63 75 62 2.2 160 96/45.7 80 120 63 85 72 2.7 200 96/59.7 80 120 63 100 84 3.7 250 96/59.7 80 120 63 100 84 3.7 250 120/53.5 100 150 73 90 70 4.2 300 120/53.5 100 150 73 90 70 4.2 300 120/61.7 100 150 73 100 82 5.1 360 120.61/7 100 150 73 100 82 5.1 360 120/73.7 100 150 73 110 90 5.9 400 120/73.7 100 150 73 110 90 5.9 500 150/49.6 125 185 122 110 80 7.8 630 150/66.6 125 185 122 125 97 9.9 800 150/66.6 125 185 122 125 97 9.9 800 150/92.6 125 185 122 151 123 12.8 1000 150/92.6 125 185 122 151 123 12.8 1300 174/74 145 205 135 130 110 14.9 1600 174/94 145 205 205 150 130 19.0 With reservation for misprint and change of specifications with out warning.
