Switch Mode Power Supply
AC - DC Supply

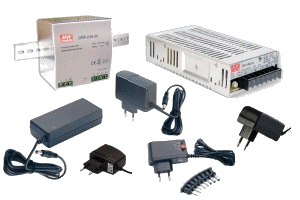

Walsall Inductive Components Ltd can supply different types of AC - DC power supplies. On this page you will find information about the following types:    • Adaptor 3 W - 24 W      Wall mounted plug-in adaptor    • Desktop 30 W - 90 W      Plastic box, wire on primary and secondary    • Power Supply 200 W - 1000 W      Metal box, Terminals    • DIN Rail 30 W - 480 W      DIN Rail mounted, Terminals

In addition to the listed types Walsall Inductive Components Ltd also supply AC-DC PCB power supply modules and open frame power supplies. Please contact our sales department for information about types not shown on this page. Adaptor 3 W - 24 W NPAM0052 Input Output Ampere Power Dimensions [mm] 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 5 VDC 9 VDC 12 VDC 15 VDC 18 VDC 24 VDC 0,8 A 0,5 A 0,4 A 0,3 A 0,25 A 0,2 A 4,0 W 4,5 W 4,8 W 4,5 W 4,5 W 4,8 W 75 x 31 x 25 75 x 31 x 25 75 x 31 x 25 75 x 31 x 25 75 x 31 x 25 75 x 31 x 25 NPAM9820 Input Output Ampere Power Dimensions [mm] 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 5 VDC 9 VDC 12 VDC 15 VDC 18 VDC 24 VDC 1,5 A 1,0 A 0,7 A 0,55 A 0,4 A 0,3 A 7,5 W 9 W 8,4 W 8,25 W 7,2 W 7,2 W 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 NPAM04151 Input Output Ampere Power Dimensions [mm] 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 90-264 VAC 5 VDC 9 VDC 12 VDC 15 VDC 18 VDC 24 VDC 2,6 A 1,56 A 1,33 A 1,07 A 0,89 A 0,67 A 13,0 W 14,04 W 15,96 W 16,05 W 16,2 W 16,08 W 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 75 x 31 x 41 NPAM9825 Input Output Ampere Power Dimensions [mm] 90-264 VAC 5-12 VDC *) 1,5-0,7 A Max 10 W 75 x 31 x 41 *) Optional secondary voltage with switch (3 - 4,5 - 6 - 7,5 - 9 - 12). NPSA103 Input Output Ampere Power Dimensions [mm] 100-240 VAC 100-240 VAC 100-240 VAC 5 VDC 9 VDC 12 VDC 0,6 A 0,34 A 0,25 A 3,0 W 3,0 W 3,0 W 50 x 25 x 41 50 x 25 x 41 50 x 25 x 41 NPSA106 Input Output Ampere Power Dimensions [mm] 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 5 VDC 6 VDC 9 VDC 12 VDC 1,2 A 1,0 A 0,7 A 0,5 A 6,0 W 6,0 W 6,3 W 6,0 W 64 x 45 x 31 64 x 45 x 31 64 x 45 x 31 64 x 45 x 31 NPSA125 Input Output Ampere Power Dimensions [mm] 100-240 VAC 100-240 VAC 100-240 VAC 5 VDC 12 VDC 24 VDC 4,0 A 2,0 A 1,0 A 20,0 W 24,0 W 24,0 W 86 x 56 x 35,5 86 x 56 x 35,5 86 x 56 x 35,5 Desktop 30 W - 90 W NPSA30 Input Output Ampere Power Dimensions [mm] 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 5 VDC 9 VDC 12 VDC 15 VDC 19 VDC 24 VDC 3,5 A 3,0 A 2,5 A 2,0 A 1,5 A 1,3 A 17,5 W 27,0 W 30,0 W 30,0 W 28,5 W 31,2 W 100 x 45 x 27,5 100 x 45 x 27,5 100 x 45 x 27,5 100 x 45 x 27,5 100 x 45 x 27,5 100 x 45 x 27,5 NPSA60 Input Output Ampere Power Dimensions [mm] 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC 5 VDC 9 VDC 12 VDC 15 VDC 19 VDC 24 VDC 4,5 A 4,5 A 4,5 A 3,6 A 3,2 A 2,5 A 22,5 W 40,5 W 54,0 W 54,0 W 60,8 W 60,0 W 122 x 60 x 31 122 x 60 x 31 122 x 60 x 31 122 x 60 x 31 122 x 60 x 31 122 x 60 x 31 NPSA190 Input Output Ampere Power Dimensions [mm] 100-240 VAC 100-240 VAC 100-240 VAC 12 VDC 19 VDC 24 VDC 7,0 A 5,0 A 4,0 A 84,0 W 95,0 W 96,0 W 156 x 64 x 35 156 x 64 x 35 156 x 64 x 35 NPAM0055 Input Output Ampere Power Dimensions [mm] 100-240 VAC 5-24 VDC *) 4,0-1,5 A Max 35 W 96 x 45 x 29 *) Optional secondary voltage with plugs in steps of 1 V. NPAM9935 Input Output Ampere Power Dimensions [mm] 100-240 VAC 5-24 VDC *) 5,0-1,9 A Max 50 W 108 x 58 x 37 *) Optional secondary voltage with plugs in steps of 1 V. NPAM0179 Input Output Ampere Power Dimensions [mm] 100-240 VAC 5-24 VDC *) 7,5-2,75 A Max 70 W 142 x 58 x 36 *) Optional secondary voltage with plugs in steps of 1 V. Power Supply 200 W - 1000 W NPMWSP200 Input Output Ampere Power Dimensions [mm] 85-264 VAC 85-264 VAC 85-264 VAC 12 VDC 24 VDC 48 VDC 16,7 A 8,4 A 4,2 A 200 W 200 W 200 W 199 x 99 x 50 199 x 99 x 50 199 x 99 x 50 NPMWSP320 Input Output Ampere Power Dimensions [mm] 88-264 VAC 88-264 VAC 88-264 VAC 12 VDC 24 VDC 48 VDC 25,0 A 13,0 A 6,7 A 320 W 320 W 320 W 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50 NPMWSP500 Input Output Ampere Power Dimensions [mm] 88-264 VAC 88-264 VAC 88-264 VAC 12 VDC 24 VDC 48 VDC 40,0 A 20,0 A 10,0 A 480 W 480 W 480 W 170 x 120 x 93 170 x 120 x 93 170 x 120 x 93 NPMWPSP1000 Input Output Ampere Power Dimensions [mm] 88-264 VAC 88-264 VAC 88-264 VAC 12 VDC 24 VDC 48 VDC 75,0 A 37,6 A 19,0 A 900 W 902 W 912 W 278 x 129 x 127 278 x 129 x 127 278 x 129 x 127 DIN Rail 30 W - 480 W NPDR30 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 85-265 VAC 85-265 VAC 5 VDC 12 VDC 15 VDC 24 VDC 3,0 A 2,0 A 2,0 A 1,5 A 15,0 W 24,0 W 30,0 W 36,0 W 78 x 93 x 56 78 x 93 x 56 78 x 93 x 56 78 x 93 x 56 NPDR45 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 85-265 VAC 85-265 VAC 5 VDC 12 VDC 15 VDC 24 VDC 5,0 A 3,5 A 2,8 A 2,0 A 25,0 W 42,0 W 42,0 W 48,0 W 78 x 93 x 67 78 x 93 x 67 78 x 93 x 67 78 x 93 x 67 NPDR60 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 85-265 VAC 85-265 VAC 5 VDC 12 VDC 15 VDC 24 VDC 6,5 A 4,5 A 4,0 A 2,5 A 32,5 W 54,0 W 60,0 W 60,0 W 78 x 93 x 56 78 x 93 x 56 78 x 93 x 56 78 x 93 x 56 NPDR75 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 85-265 VAC 12 VDC 24 VDC 48 VDC 6,3 A 3,2 A 1,6 A 75,6 W 76,8 W 76,8 W 55,5 x 125,2 x 100 55,5 x 125,2 x 100 55,5 x 125,2 x 100 NPDR120 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 85-265 VAC 12 VDC 24 VDC 48 VDC 10,0 A 5,0 A 2,5 A 120,0 W 120,0 W 120,0 W 65,5 x 125,2 x 100 65,5 x 125,2 x 100 65,5 x 125,2 x 100 NPDRP240 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 24 VDC 48 VDC 10,0 A 5,0 A 240,0 W 240,0 W 125,5 x 125,2 x 100 125,5 x 125,2 x 100 NPDRP480 Input Output Ampere Power Dimensions [mm] 85-265 VAC 85-265 VAC 24 VDC 48 VDC 20,0 A 10,0 A 480,0 W 480,0 W 227 x 125,2 x 100 227 x 125,2 x 100
