Switch Mode Power Suplly
DC - DC Converter

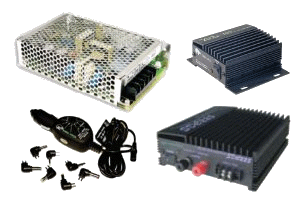

Walsall Inductive Components Ltd supplies a wide range of DC - DC converters for mounting in e.g. cars, boats and caravans as well as power cabinets where conversion between two DC levels are needed. This page contain information about the following types:    • Car Adaptor      Fit in the cars 12/24 VDC outlet    • Standard 24 to 12 VDC      Convertes 24 VDC til 12 VDC    • Variable DC - DC Converter      Input 9-72 VDC, output 4,5-30 VDC

Please contact the salesdepartment at Walsall Inductive Components Ltd if you are searching for a DC - DC converter not listed at this page. Car Adaptor NPSDC2010 Input Output Ampere Power Dimensions [mm] 11-30 VDC 1,5 - 12 VDC *) 1500 mA Max 18 W --- *) Optional secondary voltage with switch (1,5 - 3 - 4,5 - 6 - 7,5 - 9 - 12). Standard 24 to 12 VDC NPMSDD105 Input Output Ampere Power Dimensions [mm] 22-28 VDC 13,8 VDC 5,0 A 69,0 W 125 x 110 x 47 NPMSSDC210 Input Output Ampere Power Dimensions [mm] 22-30 VDC 13,8 VDC 8,0 A 110,0 W 125 x 120 x 47 NPMSSDC225 Input Output Ampere Power Dimensions [mm] 22-30 VDC 13,8 VDC 20,0 A 276,0 W 156 x 168 x 57 NPMSSSDC210 Input Output Ampere Power Dimensions [mm] 22-30 VDC 13,8 VDC 8,0 A 110,0 W 125 x 120 x 47 Variable DC - DC Converter NPMWSD25A Input Output Ampere Power Dimensions [mm] 9,2-18 VDC 9,2-18 VDC 9,2-18 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 5,0 A 2,1 A 1,1 A 25,0 W 25,2 W 26,4 W 99 x 97 x 35 99 x 97 x 35 99 x 97 x 35 NPMWSD25B Input Output Ampere Power Dimensions [mm] 19-36 VDC 19-36 VDC 19-36 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 5,0 A 2,1 A 1,1 A 25,0 W 25,2 W 26,4 W 99 x 97 x 35 99 x 97 x 35 99 x 97 x 35 NPMWSD25C Input Output Ampere Power Dimensions [mm] 36-72 VDC 36-72 VDC 36-72 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 5,0 A 2,1 A 1,1 A 25,0 W 25,2 W 26,4 W 99 x 97 x 35 99 x 97 x 35 99 x 97 x 35 NPMWSD50A Input Output Ampere Power Dimensions [mm] 9,2-18 VDC 9,2-18 VDC 9,2-18 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 10,0 A 4,2 A 2,1 A 50,0 W 50,4 W 50,4 W 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 NPMWSD50B Input Output Ampere Power Dimensions [mm] 19-36 VDC 19-36 VDC 19-36 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 10,0 A 4,2 A 2,1 A 50,0 W 50,4 W 50,4 W 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 NPMWSD50C Input Output Ampere Power Dimensions [mm] 36-72 VDC 36-72 VDC 36-72 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 10,0 A 4,2 A 2,1 A 50,0 W 50,4 W 50,4 W 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 NPMWSD100B Input Output Ampere Power Dimensions [mm] 19-36 VDC 19-36 VDC 19-36 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 20,0 A 8,5 A 4,2 A 100,0 W 102,0 W 100,8 W 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 NPMWSD100C Input Output Ampere Power Dimensions [mm] 36-72 VDC 36-72 VDC 36-72 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 20,0 A 8,5 A 4,2 A 100,0 W 102,0 W 100,8 W 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 NPMWSD100D Input Output Ampere Power Dimensions [mm] 72-144 VDC 72-144 VDC 72-144 VDC 4,5-5,5 VDC 11-16 VDC 23-30 VDC 20,0 A 8,5 A 4,2 A 100,0 W 102,0 W 100,8 W 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38
