Regulating Transformer
Built-in Transformer

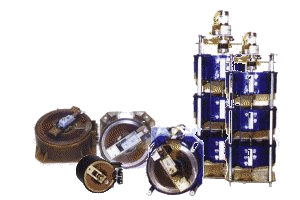

Walsall Inductive Components Ltd supplies the following regulating transformers for built-in applications.
|
|
Please contact the salesdepartment at Walsall Inductive Components Ltd if you are
searching for a regulating transformer not listed a this page.
1 Phase Regulating Transformer (with separate winginds)
ETS 230/42
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
230 VAC
|
1...42 VAC
|
4,0 A
6,3 A
10,0 A
|
168 VA
265 VA
430 VA
|
x x
|
ETS 230/253
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
230 VAC
|
1...253 VAC
|
0,8 A
1,6 A
2,0 A
5,0 A
|
200 VA
400 VA
500 VA
1250 VA
|
x x
|
1 Phase Regulating Transformer (with autotransformer windings)
ESS 230/250
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
230 VAC
|
1...250 VAC
|
From 2,0 A
to 72,0 A
|
From 0,5 VA
to 18 KVA
|
x x
|
ESS 230/260
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
230 VAC
|
1...260 VAC
|
From 1,8 A
to 66,0 A
|
From 0,5 VA
to 17,2 KVA
|
x x
|
ESS 400/430
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
400 VAC
|
1...430 VAC
|
From 1,6 A
to 34,0 A
|
From 0,7 VA
to 14,6 KVA
|
x x
|
3 Phase Regulating Transformer (with autotransformer windings)
DSS 400/430
Form A
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
400 VAC
|
1...430 VAC
|
From 1,0 A
to 6,0 A
|
From 430 VA
to 2,6 KVA
|
x x
|
Form A: Triangular assembly configuration.
|
DSS 400/430
Form B
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
400 VAC
|
1...430 VAC
|
From 2,0 A
to 48,0 A
|
From 860 VA
to 20,6 KVA
|
x x
|
Form B: Horizontal stacked assembly configuration.
|
DSS 400/430
Form C
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
400 VAC
|
1...430 VAC
|
From 1,0 A
to 72,0 A
|
From 430 VA
to 31 KVA
|
x x
|
Form C: Vertical or horizontal stacked assembly configuration.
|
1 and 3 Phase Regulating Transformer (with AC or DC motor drive)
ESS 230/250
1 phase With Motor
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
230 VAC
|
1...250 VAC
|
From 2,0 A
to 72,0 A
|
From 500 VA
to 18 KVA
|
x x
|
Motor: The regulating motor can supplied as a 230 AC or a 12 VDC motor.
|
DSS 400/430
3 phase with motor
|
Input
|
Output
|
Ampere
|
Power
|
Dimensions [mm]
|
|
400 VAC
|
1...430 VAC
|
From 2,0 A
to 72,0 A
|
From 860 VA
to 31 KVA
|
x x
|
Motor: The regulating motor can supplied as a 230 AC or a 12 VDC motor.
|
|
|
